The rail coaches were manufactured in India from 1956 when the Integral coach factory was established. The coaches based on a prototype by a Swiss company and were termed as ICF coaches. These coaches, manufactured from 1955 to 2018, were largely in use till the early 2010s.The ICF coaches were replaced by newer LHB coaches designed by Linke-Hofmann-Busch of Germany.In the 1960s, Electric multiple units (EMU) were developed for short-haul and local routes. In 2018, ICF rolled-out a semi-high speed train-set designed to be equipped with fully air-conditioned coaches with modern facilities and capable of reaching speeds of over 160 km/h (99 mph). In the late 2010s, Indian railways started upgrading the coaches of select trains from LHB to new Tejas coaches with enhanced features.
The railways offers various travel classes on its coaches, various freight wagons apart from specialized and dedicated coaching stock for other uses.As of 2022, Indian Railways rolling stock consisted of 318,196 freight wagons and 84,863 passenger coaches.The coaches are manufactured by the following units
Name = Integral Coach Factory
Abbreviation = ICF
Location = Chennai
Owner = State-owned
Established = 1955
Name = Rail Coach Factory
Abbreviation = RCFK
Location = Kapurthala
Owner= State-owned
Established = 1985
Name = Modern Coach Factory
Abbreviation = MCF
Location = Raebareli
Owner = State-owned
Established = 2012
Name = Marathwada Rail Coach Factory Abbreviation= MRCF
Location= Marathwada
Owner= State-owned
Established = 2020
Name = Rail Coach Factory
Abbreviation = RCFS
Location= Sonipat
Owner = Sonipat State-owned
Established = 2022
Name = Braithwaite & Co.
Abbreviation = BCL
Location= Kolkata PSU
Owner = as location
Established= 1913
Name = Bharat Heavy Electricals Limited Abbreviation= BHEL
Location = New Delhi PSU
Owner = as location
Established = 1956
Name = Bharat Earth Movers Limited Abbreviation = BEML
Location = Bangalore PSU
Owner = as location
Established= 1964
Name = Bharat Wagon and Engineering Abbreviation= BWEL
Location= Patna PSU
Owner = as location
Established= 1978
Name = Titagarh Rail Systems
Abbreviation = TRS
Location = Kolkata Private
Owner = as location
Established= 1984
Coach
First AC
First AC coaches are the most luxurious and expensive class in most express trains. They have separate compartments with private lockable doors. The compartments are air-conditioned and is lined along one side with the walk-way along the other side of the aisle. The first-class compartments can have cabins (two sets of berths facing each other) or coupes (single set of berths) with bedding. There are five cabins and three coupes with a total capacity of 26 passengers.While there are shower facilities provided in the coach, some trains have dedicated wash basins inside the compartments. The coaches have a dedicated attendant and often have dedicated menu for meals. Meals might be served on plates and cutlery in select trains.Passengers are allowed a luggage allowance is 150 kg per person.
First Class (FC)
First class coaches in express trains were similar to first AC coaches with a combination of cabins and berths.They are non air-conditioned and do not have all the facilities of first AC coaches. They were started to be phased out of normal express trains starting in the 2000s and the last coach being de-commissioned in 2015. The First class is still in use in toy trains where the coaches consist of seats similar to chair cars.
Executive Anubhuti
Executive Anubhuti is the premium class of chair car and is equipped with retractable seats in 2x2 configuration. The coaches are air-conditioned and have a capacity to seat 56 passengers. The coaches have wide windows and large, cushioned seats with leg and armrests similar to business class seats in aircraft. The seats are equipped with a LCD and entertainment system with large luggage compartments.The seats have dedicated LED reading lights, power sockets and call buttons. The coaches are equipped with modular bio toilets with automated taps, hand driers and soap dispensers. The exterior and parts of interior are covered with anti-graffiti vinyl wrapping. The coaches are equipped with a passenger information system. Meals are often provided as a part of the journey ticket. The class is available only in select trains
AC Executive Class
AC Executive Class is often the top most class of chair car in express trains. It is equipped with retractable seats in 2x2 configuration.The coaches are air-conditioned and have a capacity to seat 46 passengers. The coaches have large, cushioned seats with leg and armrests equipped with tray tables. The seats have dedicated LED reading lights and power sockets. The coaches are equipped with modular bio toilets with automated taps, hand driers and soap dispensers. Meals are often provided as a part of the journey ticket. In Vande Bharat Express trains, the coach has a capacity to seat 52 passengers and are equipped with more features including rotating seats, CCTVs, passenger information system, larger toilets, USB ports and automated doors.
Second AC or AC-2 tier
Second AC or AC 2-tier is an air-conditioned sleeping car with wide sealed windows. There are four berths arranged in two-tiers facing each other in a single bay with two-tiered berths arranged on the sides lengthwise across the corridor for a total of 46 to 54 berths per coach. The coaches have four entry or exit doors and four lavatories. There are separate curtains provided at individual berths for privacy. the individual berths are equipped with reading lights and charging sockets.A simple bedding with blankets and a pillow is provided. Food is available on order or as a part of the ticket depending on the train. The allowed luggage allowance is 100 kg per passenger.

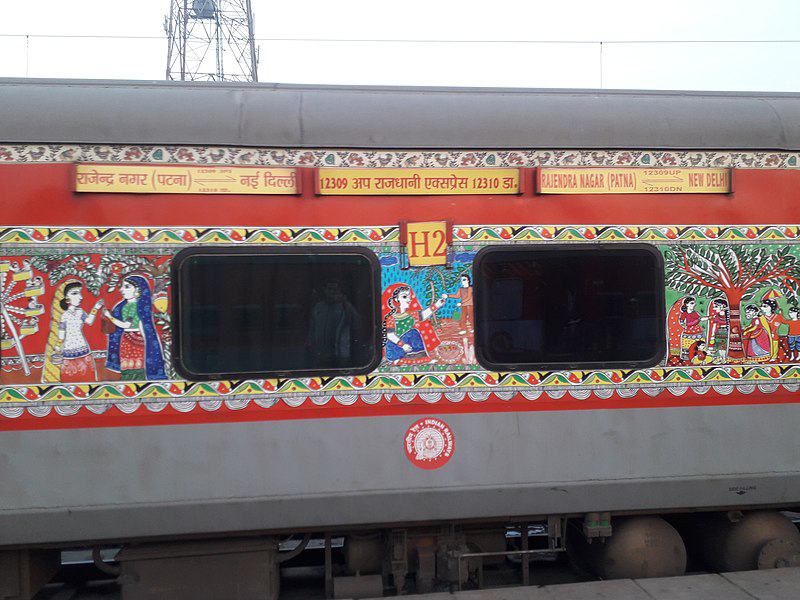

AC First Class cum AC 2 Tier
AC First Class cum AC 2 Tier is a hybrid configuration coach consisting of combination of two classes in a single coach. There are ten seats of AC first class consisting of two cabins of four berths and a coupe of two berths along with 20 berths of AC 2-tier.

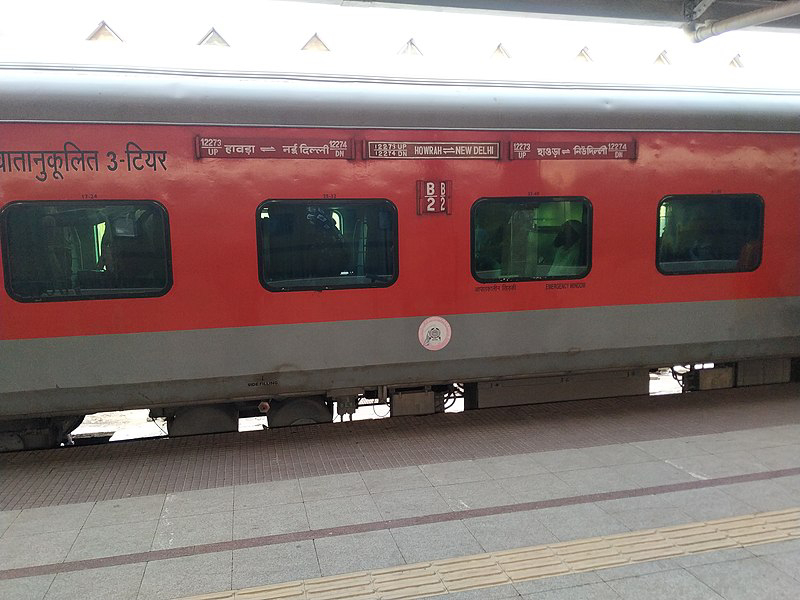

Third AC or AC 3-tier
Third AC or AC 3-tier is an air-conditioned sleeping car.There are six berths arranged in three-tiers facing each other in a single bay with foldable middle berths and two-tiered berths arranged on the sides lengthwise across the corridor for a total of 64 to 72 berths per coach. The coaches have four entry or exit doors and four lavatories.Separate curtains were provided earlier but were removed due to safety issues. There are common charging sockets and lights in each compartment. A simple bedding with blankets and a pillow is provided. Food is available on order or as a part of the ticket depending on the train with the same menu shared with AC 2-tier.The allowed luggage allowance is 40 kg per passenger.
AC 3-tier economy
AC 3-tier economy coaches are air-conditioned sleeping cars similar to AC 3-tier. Compared to 3-tier coaches, they have an extra middle berth along the aisle with a capacity of 72 to 81 passengers per coach.The coaches were first introduced in Garib Rath trains and only a few trains operate with such coaches. Bedding is available for rent and the coaches have facilities like charging sockets and lights similar to AC 3-tier coaches.
AC chair car or chair car
AC chair car or chair car are air-conditioned coaches equipped with retractable seats and sealed windows. There are five seats in each row in 3x2 configuration with a total capacity of 73 to 78 passengers per coach.The coaches have cushioned seats with leg and armrests equipped with tray tables. The coaches are equipped with four entry or exit doors with sliding doors leading to the seating areas and four lavatories. The coaches are also equipped with LED reading lights, power sockets along the window side and luggage storage racks. Meals are provided as a part of the journey ticket in select trains. The allowed luggage allowance is 40 kg per passenger.In Vande Bharat Express trains, the coach has a capacity to seat 78 passengers and are equipped with more features including passenger information system, CCTVs, larger toilets and automated doors
Double Decker
Double Decker coaches have similar seats to a chair car but have seats on two levels with the decks accessible via staircases inside each coach. These coaches are taller than normal coaches at 4,366 mm (171.9 in) and can seat up to 120 passengers per coach.These coaches are run on dedicated double decker trains
AC Tourist cars
AC Tourist cars have vistadome coaches with glass roofs and extra wide windows. The interiors are similar to AC chair car coaches. Select trains operating mostly on tourist circuits are equipped with such coaches.Indian Railways plans to introduce these coaches in all mountain railways.
Sleeper class
Sleeper class is the most common sleeping car coach in Indian Railways. There are six berths arranged in three-tiers facing each other in a single bay with foldable middle berths and two-tiered berths arranged on the sides lengthwise across the corridor.The coaches have a capacity of 72 to 81 berths per coach. The coaches are not air-conditioned and have open-able windows. There are common charging sockets, ceiling mounted fans and lights in each compartment. Food is available on order or can be purchased from vendors. The allowed luggage allowance is 80 kg per passenger.
Second sitting
Second sitting is the most common chair car coach and the cheapest in the Indian Railways. These coaches have a seating capacity of 108 while Jan Shatabdi trains have 103 seats per coach. It is common in most day-time running trains with six seats arranged in 3x3 configuration. The seats may face each other or towards the same side. The coaches are not air-conditioned and have open-able windows. There are common charging sockets, ceiling mounted fans and lights in each compartment. Food is available on order or can be purchased from vendors.The allowed luggage allowance is 70 kg per passenger
Unreserved or general coaches
Unreserved or general coaches are second seating coaches which are not available for reservation and seats are taken on available basis. One or more of these coaches are attached to express trains while dedicated passenger trains might also have all unreserved coaches. Tickets are valid on any train on a route only for within 24 hours of purchase

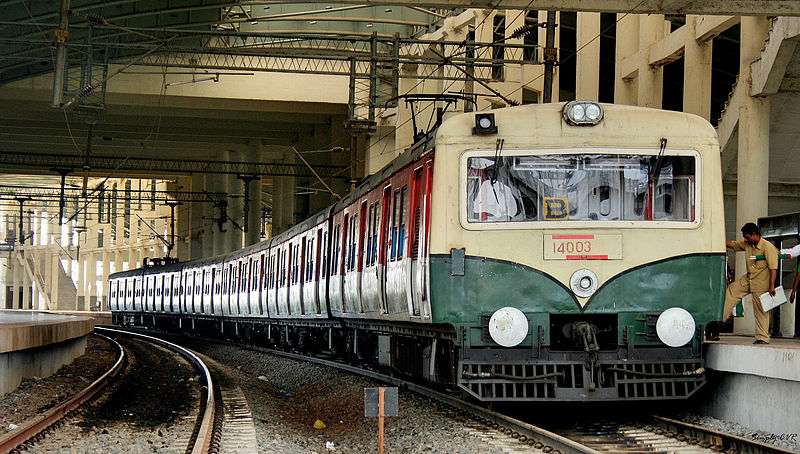

Suburban rail systems
Suburban rail systems use Electric multiple unit (EMU) and Diesel electric multiple unit (DEMU) train-sets which have a set of motor coaches powering the train-set interspersed with passenger coaches. The motor coaches have a reduced seating capacity than normal coaches. The coaches have large entry and exit on both sides with multiple sets of seats arranged in various configurations. MEMU trains which are used for short-distance inter-city routes also have a similar configuration.Each train-set may have one or two first class coaches with better seats. These coaches are generally non-air conditioned while there are air-conditioned coaches used in select routes

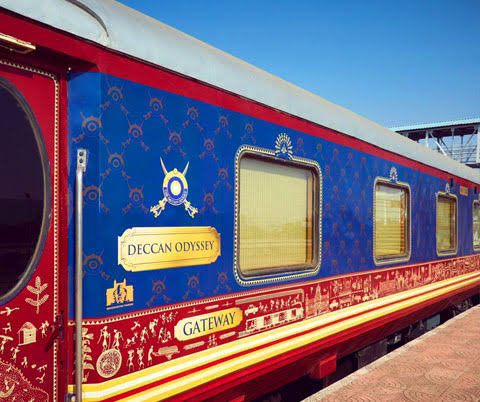

Luxury Trains
Apart from general trains, Indian railways operates luxury trains such as Maharajas' Express, Deccan Odyssey and other special tourist trains with varied classes.These may include standard coaches, regular coaches with modifications and specially designed coaches with coupes, dedicated cabins and suites. Saloon coaches are also available for chartering which are equipped with a bedroom and kitchen and can be attached to normal trains. Special coaches can also be attached to normal trains in case of special circumstances.
Coach numbering
The coaching stock have unique five or six digit identifiers. Till 2018, the first two digits indicating the year of manufacture and the last three digits indicating the class. In 2018, the numbering system was changed with the first two digits indicating the year of manufacture and the last four digits indicating the sequence number.
Coach numbering (Last 3 digits)
Code
First Ac = 001-025
First AC + AC 2-tier = 026-050
AC 2-tier = 051-100
AC 3-tier = 101-150
AC chair car = 151-200
Sleeper = 201-400
General = 401-600
Second sitting= 601-700
SLR = 701-800
Others = 800+
After 2018
Coach numbering (Last 4 digits)
Code
EMU. = 8001-9999
DEMU = 1001-7999
MEMU = 0001-0999
For the purpose of identification in passenger trains, coaches in a train-set are assigned an alpha-numeric code. The first letter identifies the coach class and the second letter identifies the coach number.
Coach code (First digit)
Code
First AC = H
First Class = F
Executive Anubhuti = EA
Executive = E
Executive Vistadome = EV
AC 2-tier = A
First AC+ AC 2-tier = HA
AC 3-tier = B
AC chair car = C
Economy = G
Sleeper = S
Second sitting = D
Jan Shatabdi = J
Seat classification
The berths and seats are numbered by an alphanumeric code with the letter(s) identifying the berth/seat type and numbers identifying the position. In standard coaches, the berths and seats are classified as follows
Berth
LB = Lower berth
MB = Middle berth
UB = Upper berth
SL = Side lower berth
SM = Side middle berth
SU = Side upper berth
Seat
WS = Window side
M = Middle
A = Aisle
Indian Railways operates more than 4000 cargo and goods trains daily. It hauls variety of cargo to cater to various requirements and have specialized rolling stock corresponding to the cargo hauled. There are 243 types of rolling stock used for cargo operations. These include covered wagons, boxcars, flat wagons, flatbeds, open wagons, hoppers, containers, automobile carriers, defense vehicle carriers and tankers. The freight cars can often carry loads from 10 to 80 tonnes per car depending on the configuration.
